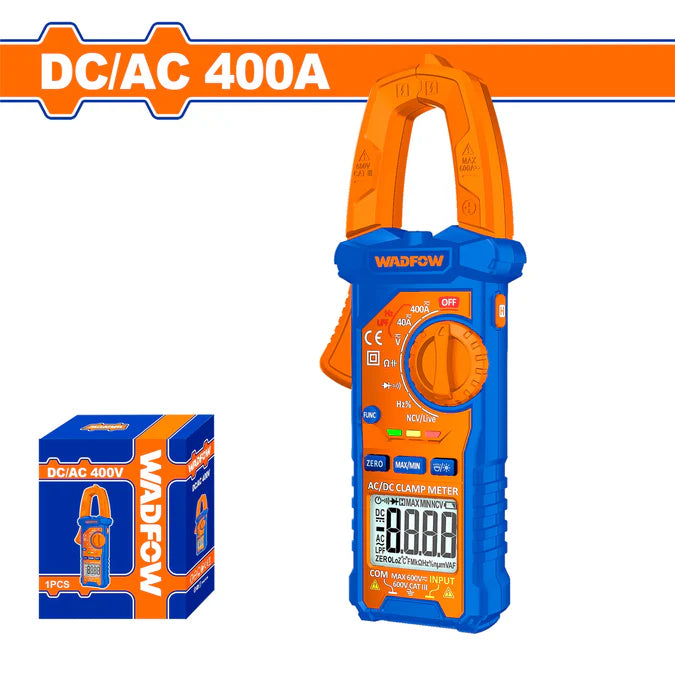

Wadfow AC/DC Clamp Meter WDM65035

Model: WDM65035

Specification

Display: 4000 counts

LCD: With backlight

DC Current: 40 A / 400 A

AC Current: 40 A / 400 A

AC Voltage: 2 V / 20 V / 200 V / 400 V

DC Voltage: 400 mV / 40 V / 400 V

Resistance: 600 ? / 6 k? / 60 k? / 600 k? / 6 M? / 60 M?

Capacitance: 10 nF / 100 nF / 1000 nF / 10 ?F / 100 ?F / 1000 ?F / 10 mF / 100 mF

Frequency: 10 Hz / 100 Hz / 1000 Hz / 10 KHz / 100 KHz / 1000 KHz / 10 MHz

Duty Cycle: 1% ~ 99%

Smart Functions:

NCV

Lows

Diode test

Data hold

Low battery indication

Auto power off

Flashlight function

Accessories Included:

• 2 pcs x LR03 AAA batteries

Features:

• High-resolution display with 4000 counts and backlight for easy reading.
• Comprehensive measurement capabilities for current, voltage, resistance, capacitance, and frequency.
• Built-in NCV for non-contact voltage detection.
• Data hold feature to retain measurements for convenience.
• Low battery indication ensures reliable operation.
• Auto power off function for energy conservation.
• Compact and portable design with a built-in flashlight for use in dark environments.
